Learjet 60
Aircraft in Service
6
Crew
2 pilots (cabin attendant upon request)
Capacity
2 Intensive Care Patient
Cabin
Length 5,40 m / 17,72 ft
Width 1,81 m / 5,11 ft
Height 1,74 m / 5,8 ft
Seating Configuration
7 Pax
Med. Crew
EMS-Physician + Paramedic (2nd Med Crew possible)
Cruise speed
780 km/h
0,73 Mach
420 kn
Max. Cruising Ceiling/Altitude
15.500 m
51.000 ft
Range
4.450 km
2.405 nm
Engines
2 x Pratt & Whitney 305A, each 4.600 lbf Thrust
Max. Take Off Weight
10.660 kg / 23.500 lbs
Min. Runway Length
1.660 m / 5.440 ft
State-of-the-art Medical Equipment
The complete set of medical and technical equipment on board FAI Air Ambulances meets the highest international standards. In order to fulfill clients expectations, FAI has continuously expanded the scope and quality of its medical equipment and kept up with technological advances through equipment replacements.
Medical equipment
- Lifeport or Spectrum Intensive Care Base Units: Patient Loading System, Central Oxygen Tank, Vacuum Generator, Compressed Air System, Electrical Outlets for 220V or 24/12V
- SatCom for worldwide communication
- Standard Medical and Technical Equipment:
- Zoll X Series: Multi Parameter Transport Monitor for IntensiveCare including ECG, NIBP, IBP (2-channel),Temperature (2-channel), etCO2 (sidestream), Compact Defibrillator-Monitor-System with Cardiac Pacemaker
- Hamilton T1: State-of-the-Art ventilator for transport of critical care patients (Backup Oxylog 3000)
- ABBOTT i-STAT: Portable Blood Analyzer for physiological status determination throughout the flight
- Additional Specialized Equipment:
- Draeger 5400 transport: Incubator with Stephan F120 intensive care respirator
- PENTAX Bronchoscope: Bronchoscope for fiberoptic suction and intubation

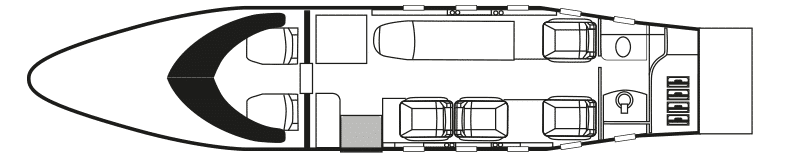

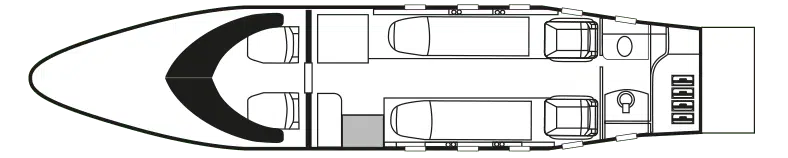

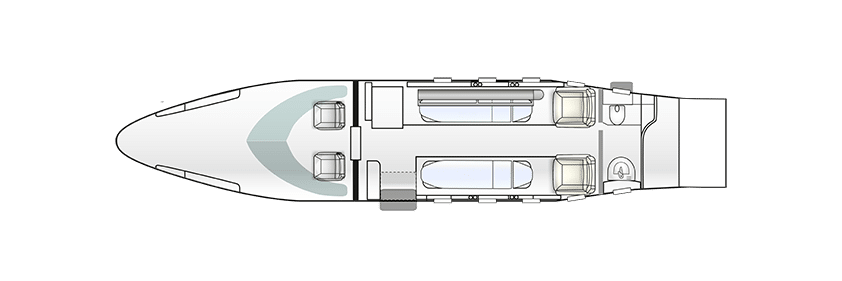

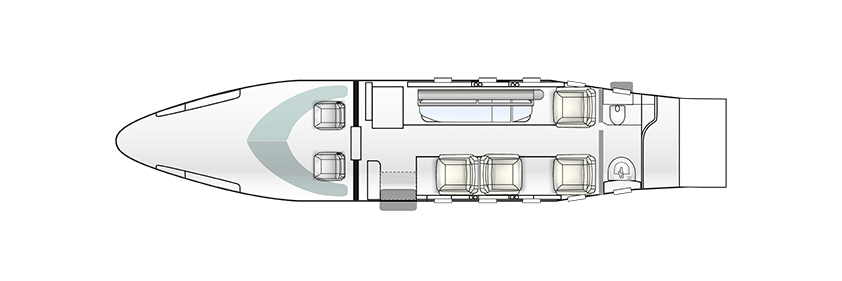

Floorplan
